fiber optic fast quick connector optical field assembly connector fast sc/apc

FOB Reference Price:Get Latest Price
$0.42 - $0.62 / Pieces | 50 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 5 7 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
DYS
Model Number:
SC/APC
Product name:
fast connector
Color:
Green,Blue
Connector type:
SC/UPC,SC/APC
Fiber cable type:
3mm Drop cable, 3x2mm Flat cable
Insert loss:
less 0.25db
Return loss:
more than 55db
Fiber Type:
SM/MM
Operate Temperature::
-40℃to85℃
Application:
FTTH FTTB FTTX Network
Certification:
ISO9001
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Individual Package or plastic box
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 5 7 To be negotiated
Video Description
Product Description

Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .

Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry

APPLICATIONS

Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.

FEATURES

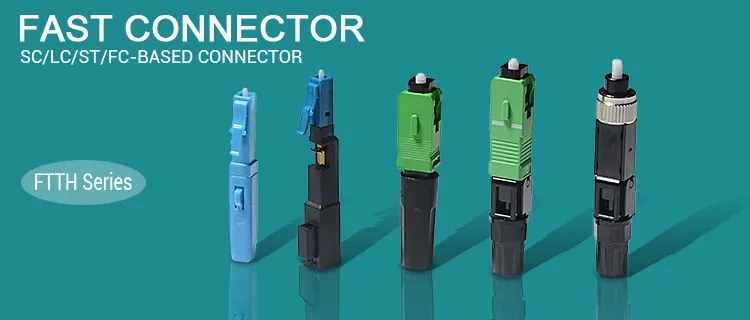

Single fiber, SC/LC/ST/FC-based connector
In-line connection available
Operating temperature: -40° to 85°C
Cable Diameter Range: 2.0mm, 3.0mm, 2.0*3.0mm

Type
SM-UPC
SM-APC
MM-UPC
Typical
MAX
Typical
MAX
Typical
MAX
Insertion loss
≤0.1
≤0.3dB
≤0.15
≤0.3dB
≤0.05
≤0.3dB
Return loss
≥50dB
≥30dB
Durability
500 mating cycles
Working temperature
-40 to + 85℃
Our Company

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
