Fiber Optic Outdoor waterproof ODLC to LC Patch Cord Jumper

FOB Reference Price:Get Latest Price
$10.00 - $20.00 / Piece | 2 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
DYS/OEM
Model Number:
ODLC to LC Patch Cord
Cable Diameter:
7.0
Mating durability min:
100 cycles
Temperature:
-40°C to +70°C
150 N Pull Force:
per IEC61300-2-4
Packing:
Individual Bag
Connector type:
ODLC
Model:
Singlemode or Mulitmode
Test Wavelength:
1310/1550nm
Waterproof Grade:
IP67
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Individual packaging bag
Port
Shenzhen
Lead Time :
3 days
Product Description

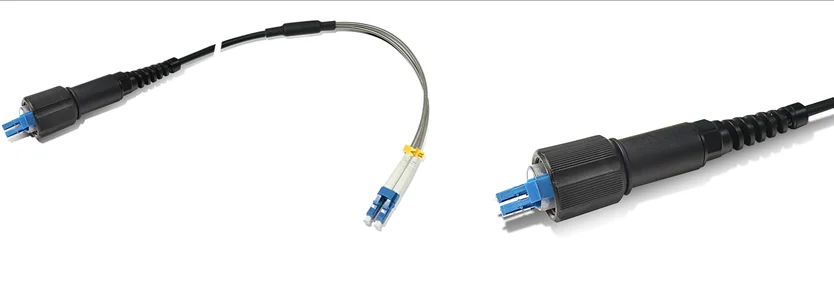

Fiber Optic Outdoor waterproof ODLC to LC Patch Cord Jumper

Next generation WiMAX and Long Term Evolution (LTE)Fiber/Power/Signal To The Antenna (x-TTA) connectivitydesigns require rugged cable assemblies for outdoor use.For direct connection, these cable assemblies need to plug directly into the optical transceivers or other connector types though a bulkhead construction.


For this specific application, the connector design will need to accommodate for a large tolerance in Z-direction.Furthermore, the connector shell must allow for easy one handed mating. This LC outdoor connector
sealing systems were designed to function with a very large Z-axis tolerance, hence accommodating for the
broadest range of transceivers on the market. This unique feature allows end users to pick almost any transceiver they wish.



Application

WiMAX and LTE Base Stations
 Remote Radio Heads (RRH)
 Industrial outdoor applications
 Robotics
 Aerospace & Defense



Mechanical



Designed to meet 150 N cable retention
Designed to meet IP67
LC interface

Single- and Multimode
Bayonet style locking
Duplex LC interconnect MM or SM
No tools required
Operating temperature : -40ºC to +70ºC
Mating durability min : 100 cycles.



Key Features
Open bulkhead for easy access to SFP
Positive mechanical feedback to operator when fully mated
One-hand mating
Duplex LC interface
Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and single mode

Water proof, dust proof and corrosion resistant.
Expansion to RJ45 and Power possible
Plug has tolerance free design,fully free floating on Z-axis
No cable buckling during or after installation.
Cost effective metal die cast bulkhead
Field installable version available



Pictures in detail


Packaging & Shipping


Related Products


Company Information

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly offer fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
